Arctic Cat 650 H1 Storm Chasers Marine Services, Inc. Seward, AK (907) 224-3536

Product Categories

Showcase Product Detail

	List Price: $7,199.00 Sale Price: $6,200.00 You Save: $999.00

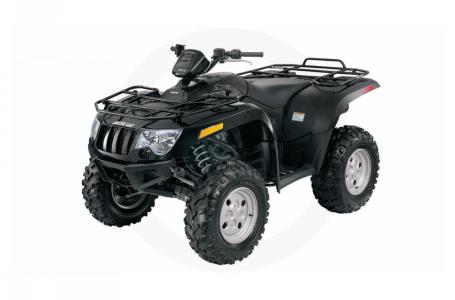

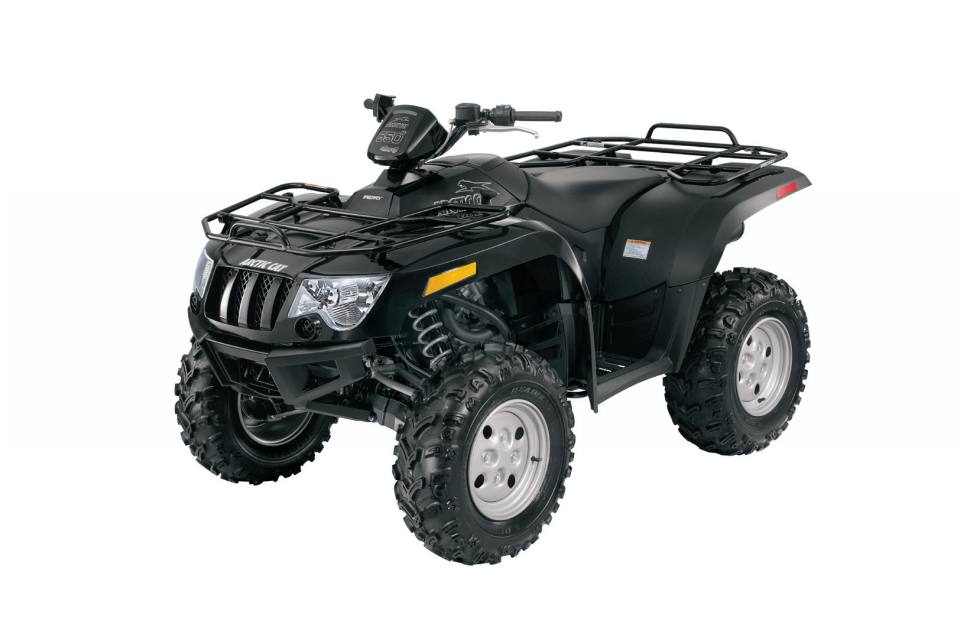

2010 Arctic Cat 650 H1
2010 650 H1 Sale Now until May 5, 2011 $999.00 Off MSRP

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

There's a little bit of showmanship in this machine. And maybe a touch of braggart. That's due to combination of its 641 cc, liquid-cooled engine and a durable Ride-In suspension. As far as versatility, the 650 H1 possesses an electric switch at your fingertips in concert with a front differential lock to easily shift between 2-wheel or 40wheel drive. This thrill-seeking machine can conquer the toughest land surfaces with ease thanks to its 11" of ground clearance and lower center of gravity. Add in a durable chassis and easy-to-see digital instrumentation, and you've got yourself an ATV that's bound to show off.

Ride-In Suspension - Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 11" of ground clearance. That means more confidence hammering through tight corners on the trail, as well as clearing big nasty obstacles off the trail.
650 H1 Engine - Need a time-tested engine with a proven performance record? This 641cc, liquid-cooled engine has all you need. The "H" in its "H1" title stands for hemispherical-shaped heads, delivering more efficient combustion resulting better performance. With a single cylinder and a single overhead cam, this engine will help youdefine yourself as a true trailblazer.
Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range and a long-life constant tension belt.
Digital Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter, fuel gauge and coolant temperature.
Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
SpeedRack™ System - Rugged steel racks are rated for 1000 lbs. up front and 200 lbs. in back. Our SpeedRack™ system is designed for quick, easy versatility. Add or remove a multitude of accessories from baskets and bags to tool holders, simply by inserting or removing two pins.

Specifications

Displacement: 641 cc
Engine Type: SOHC, 4-stroke, 4-valve
Bore & Stroke: 98 x 85 mm
Cooling System: Liquid with fan
Fuel Capaciy: 5.7 gal / 21.6 L
Alternator Capacity: 25.0 amps
Speedometer: Digital
Odometer: Digital
Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
Drive System: 2/4 WD + Diff Lock
Front Brakes: Hydraulic Disc
Rear Service Brakes: Hydraulic Disc
Front Suspension: Double A-Arm
Front Travel: 10 in / 25.4 cm
Rear Suspension: Double A-Arm
Rear Travel: 10 in / 25.4 cm
Front Tires (Pressure): 25 x 8-12 (5)
Rear Tires (Pressure): 25 x 10-12 (5)
Overall Length: 84.8 in / 215.4 cm
Overall Width: 47.5 in / 120.6 cm
Overall Height: 48 in / 121.9 cm
Wheelbase: 50 in / 127 cm
Ground Clearance: 11 in / 27.9 cm
Dry Weight: 692 lbs / 313.9 kg
Front Rack Capacity: 100 lbs / 45.4 kg
Rear Rack Capacity: 200 lbs / 90.8 kg
Towing Capacity: 1,050 lbs / 476.3 kg
Color Options: Black

Specifications

Engine
Engine Type	SOHC, 4-stroke, 4-valve
Displacement	641 cc
Bore x Stroke	98 x 85 mm
Engine Cooling	Liquid with fan
Alternator	25.0 amps
Chassis
Front Suspension	Double A-Arm
Front Travel	10 in. (25.4 cm)
Front Brake Type	Hydraulic Disc
Front Tires	25 x 8-12 (5)
Rear Travel	10 in. (25.4 cm)
Rear Suspension	Double A-Arm
Rear Brake Type	Hydraulic Disc
Rear Tires	25 x 10-12 (5)
Dimensions/Capacities
Dry Weight	692 lbs. (313.9 kg)
Front Rack Capacity	100 lbs. (45.4 kg)
Rear Rack Capacity	200 lbs. (90.8 kg)
Towing Capacity	1,050 lbs. (476.3 kg)
Fuel Capacity	5.7 gal (21.6 l)
Ground Clearance	11 in. (27.9 cm)
Machine Dimensions (LxWxH)	84.8 x 47.5 x 48 in. (215.4 x 120.6 x 121.9 cm)
Wheelbase	50 in. (127 cm)
Drive Train
Drive Train	2/4 WD + Diff Lock
Transmission	Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer	Digital
Odometer	Digital
Colors	Black

Compare Models

Chassis

Year	2010
Manufacturer	Arctic Cat
Model	650 H1
Style	Utility
MSRP*	$7,199.00
Front Suspension	Double A-Arm
Front Travel	10 in. (25.4 cm)
Front Brake Type	Hydraulic Disc
Front Tires	25 x 8-12 (5)
Rear Suspension	Double A-Arm
Rear Travel	10 in. (25.4 cm)
Rear Brake Type	Hydraulic Disc
Rear Tires	25 x 10-12 (5)
Frame
Dimensions/Capacities
Dry Weight	692 lbs. (313.9 kg)
Front Rack Capacity	100 lbs. (45.4 kg)
Rear Rack Capacity	200 lbs. (90.8 kg)
Towing Capacity	1,050 lbs. (476.3 kg)
Fuel Capacity	5.7 gal (21.6 l)
Ground Clearance	11 in. (27.9 cm)
Machine Dimensions (LxWxH)	84.8 x 47.5 x 48 in. (215.4 x 120.6 x 121.9 cm)
Wheelbase	50 in. (127 cm)
Drive Train
Drive Train	2/4 WD + Diff Lock
Final Drive
Transmission	Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type	SOHC, 4-stroke, 4-valve
Displacement	641 cc
Bore x Stroke	98 x 85 mm
Cylinders
Engine Cooling	Liquid with fan
Fuel System
Starting System
Alternator	25.0 amps
General
Speedometer	Digital
Tachometer
Odometer	Digital
Lighting
Colors	Black
Warranty

Current Promotions

There are currently no promotions available for this product.
